Scotch Yoke Actuators

Basic Introduction

First, scotch yoke actuators are classic power drive devices for valves.Meanwhile, they adopt a professional fork and slider transmission structure.
Unlike regular actuators, they generate stronger torque at stroke ends.Besides, they mainly support quarter-turn valve opening and closing work.
Furthermore, they fit ball valves, butterfly valves and plug valves well.

Working Principle

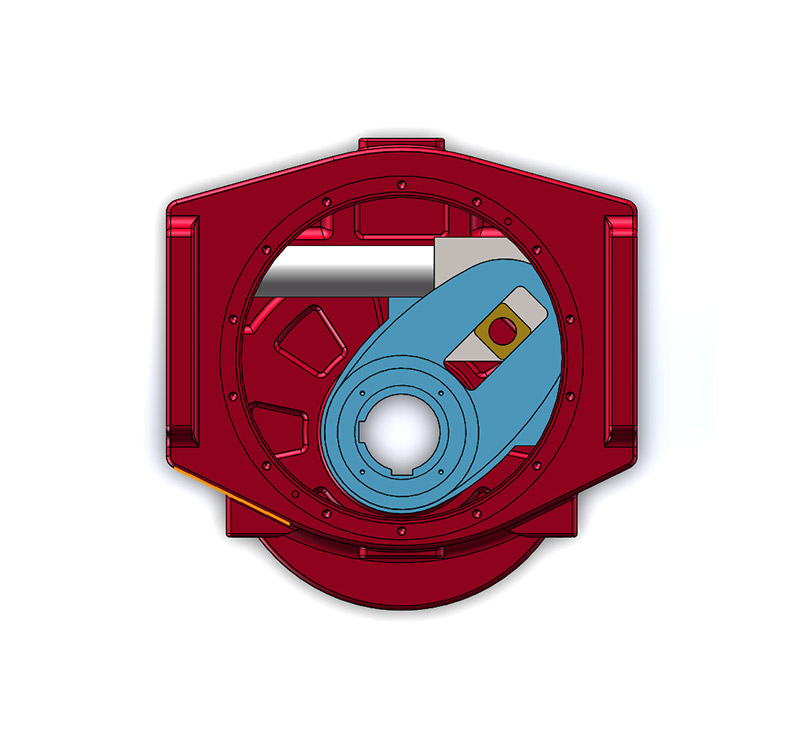

Primarily, internal piston pushes the slider for linear back-and-forth movement.Then, the fork structure converts linear motion into rotary motion.
Next, the actuator drives the valve shaft to rotate ninety degrees.Also, it produces rising torque when valves fully open or close tightly.
Moreover, this mechanical design ensures steady and firm valve sealing.

Core Structural Advantages

Firstly, scotch yoke structures feature high mechanical transmission efficiency.Therefore, they save extra power consumption during daily operation.
Besides, thick and solid parts greatly improve overall structural strength.Meanwhile, the simple mechanical design reduces internal failure points.
Furthermore, the whole device resists deformation under heavy load.

Practical Operation Benefits

Generally, this actuator delivers larger torque than common standard models.Specifically, it provides enough force for hard-seal valve tight closing.
Also, it runs smoothly without jitter in frequent switching scenarios.Besides, it adapts well to unstable on-site air or oil pressure.
Moreover, it keeps consistent performance after long running hours.

Wide Application Scope

Primarily, this actuator suits high-pressure industrial pipeline systems.Also, petrochemical and natural gas industries widely use this product.
Besides, power plants apply it for critical fluid control pipelines.Moreover, urban gas and water conservancy projects adopt it frequently.
In addition, it fits harsh working sites with heavy operating loads.

Product Summary

Overall, scotch yoke actuators own reliable and high-torque performance.Thus, they solve insufficient torque problems of ordinary actuators.
Besides, they lower breakdown rates and reduce daily maintenance work.Meanwhile, they improve safety for industrial pipeline operation.
Finally, they become preferred drives for heavy-duty quarter-turn valves.
